PAGE 11 – MARCH 2003

Everything but the kitchen sink!

knockout
layoutplan

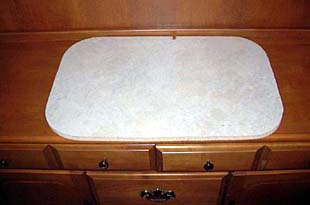

Brian Wilson, who lives in Sidney, BC, Canada, has carried recycling to new heights in his current layout. In Brian’s own words: “As my basebaord I’m using a kitchen sink cutout left over after kitchen renovations [above left]. Since this is my first attempt at a micro, I decided to keep it as simple as possible (KISS principle!).

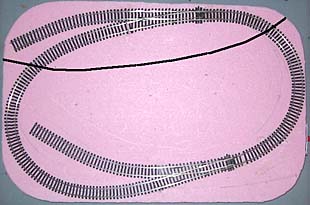

“I have used standard Peco switches and track for both the lower On30 portion [above right] and the upper On18 portion — with the only grade being on the upper level to bring the On18 track down to the ore bin. I haven’t included any other structures at this time, again in the interest of simplicity. I think, however, I will make the upper level and divider removable as a lift-out so that I will be able to swap different themes and scenery in the future.

“Insofar as operations are concerned, the On18 portion will involve bringing small tips down to the ore bin. The On30 portion will serve to collect the ore (or whatever) and spot the cars on the upper siding where they will go “elsewhere.” Empties will move in reverse. The continuous run will be used to break in engines and as a run-around for switching. The types of cars and loads in each case will depend upon the lift-out in place.”

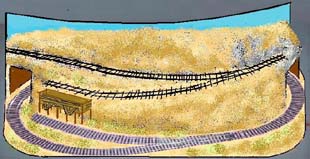

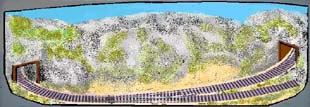

Brian’s delightful computer sketches of the finished layout’s appearance are shown below — one view from each side of the layout.

layout1
layout2

hillclimbFrom the Archive

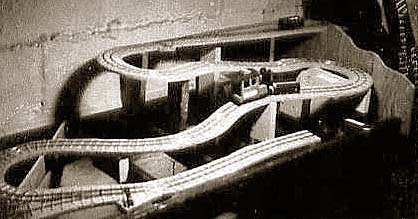

The photo at right turned up the other day in an old scrapbook that I hadn’t looked at in years. It shows a virtually prehistoric layout that I made in the early 1960’s — a 1:32n20 “hillclimber” layout. The scale is 3/8″ to the foot, and the gauge is HO (16.5mm).

The operating plan was simple — the loco hauled the freight from the upper level down to the spur at the bottom right, then reversed and shoved the cars into the interchange yard (off camera to the left).

Track is hand-laid and stock is all scratchbuilt or converted from standard HO stuff. Wish I could find a photo of the finished layout. My guess is that I never got around to finishing it!


One good plan deserves another

Tuppence

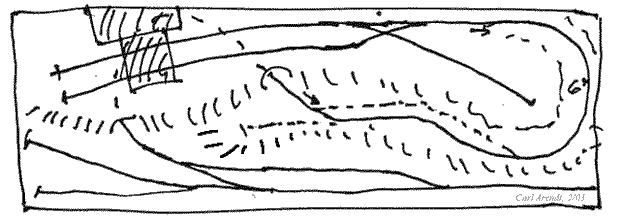

This quick sketch shows an expansion of one of my favorite plans from the Micro Layout Design Gallery, called Ha’Penny Mining Co. The original design is 30″x18″, but a reader asked how it would look if it were stretched out to 60″ — double the width. The above sketch was my sugestion. He came up with a similar design and has begun construction — with luck, we’ll have some photos of the finished layout in due course.

This “stretched” version, called Tuppence Mining Co., provides for a nice-sized interchange yard and runaround at the bottom level, and a long, steady uphill climb to the mine. To add some spice to operations, you might want to install a passing loop (siding) midway up the hill (without interrupting the climb, of course!), and that is indicated with dashed lines. Two trains, heading in opposite directions, can meet and pass here — with the uphill train having the right of way!

This is an On30 or On18 plan, which could be built in Gn15 or HOn30 as well. Minimum radius as shown is 6 inches. This design illustrates the well-known fact that a good plan can be made even better if additional space is available!



Carl Arendt

Webmaster Carl Arendt died on March 4, 2011 in Olympia, Washington. Carl came to Pittsburgh to attend Carnegie Mellon where he graduated with a degree in physics and met Sheila, his wife of 49 years. Carl started work for Westinghouse Electric Corporation where he spent his entire career. During this time, he and Sheila raised their three sons. Following retirement from Westinghouse, Carl threw himself into the world of micro-railroading. In 2002 he started this web site, and authored three books on the subject. This web site attracted a large worldwide following, and Carl built up a collection of friends who came to know and respect him even though most had never met him in person. Such was his personality that it shone through across the ether. He and Sheila moved to Olympia in 2009 to be close to their son Giles and his family, where Carl enjoyed time with his three grandchildren. His wit, erudition, and creativity made this true gentleman a joy to be with, in both the real and the virtual world. This site is a trove of microlayout ideas and examples, and so long as it continues will keep Carl's memory alive and further the hobby he loved.
