PAGE 79 – November 2008

H O T I D E A S F O R S M A L L R A I L R O A D S

CONTINUOUS LAYOUTS FOR LARGE SCALES

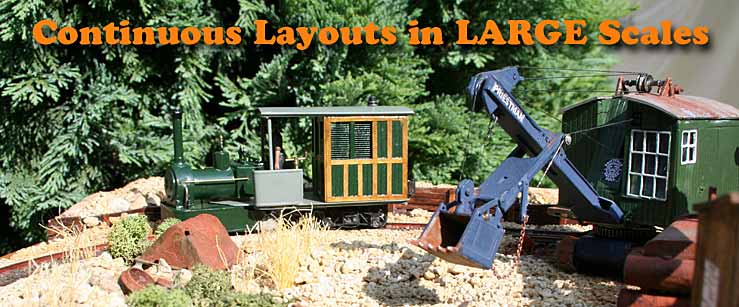

Title photo: Ian Wilson’s O16.5 Everthorpe Quarry. See story below.

This issue concludes our four-part survey of small layouts in many scales. We’ve examined
Shelf Layouts in Large Scales (#77) and Small (#78), as well as Continuous Circuits
in Small Scales (#77a). Here then are a group of round and round layouts made
in O and G (“Large”) scales. And don’t miss the “World’s Smallest” info below!


On3 (1:48) — NARROW GAUGE MINING OPERATION IN 2X4 FEET

Coffee Creek Mining RR
Al Wahlberg, from Holtsville, Long Island, NY USA, built the On3 Coffee Creek Railroad from 3-inch (76mm) foam slabs. Dimensions are 2x4ft (60x120cm). Al describes it this way: “The layout is an oval dented in the front with one hand-built and hand-operated turnout. The Porter locomotive and the small gas engine are both Grandt line kits; the Porter is an exceptional performer. All of the rolling stock is freelanced and scratchbuilt. The structures are also all freelanced.”

Track is hand-laid using Code 70 rail to the gauge of ¾in (19mm). For an interesting trans-Atlantic comparison, see Steve Bennett’s very-similar British demonstration Gn15 layout in Scrapbook #6.
Coffee Creek Mining RR Coffee Creek Mining RR


On30 (1:48) — On30 LOGGING ROAD ALSO FITS A 2X4 SPACE

Basche and Wackett Mining

Rick Ludlow, from Medford, Oregon USA, is building his Basche & Wackett On30 railroad as several independent mini layouts. His B&W Maintenance Yard shelf layout was featured in our “Big Trains on Small Shelves” Scrapbook issue (#77).

Shown here is an oval section of the road, designed to allow some continuous running as well as to provide Rick an area to practice scratchbuilding. Dimensions, like the Coffee Creek above, are 2x4ft (60x120cm). The photo was taken at the annual Medford train show, where Rick’s layouts are popular attractions.




On30 (1:48) — ‘PICTURE FRAME’ LAYOUT IDEAL FOR TRAIN SHOWS

Dominion Brick Co. Dominion Brick Co.
It was a chilly February night in Victoria, British Columbia, Canada. Daniel von Kanel was attending a meeting of the Friday Night Irregulars, a narrow gauge group. On this occasion they were discussing micro layouts that several members were building, and Daniel remarked that he had seen a layout plan that he liked, here on the Micro Layouts website—Avalon Brick Works, originally by Julian Andrews and now owned and exhibited by Howard Martin. “And before I knew it,” Daniel wryly recalls, “I had been hornswaggled into building one for our upcoming Vancouver Island show in September… a mere seven months away!”

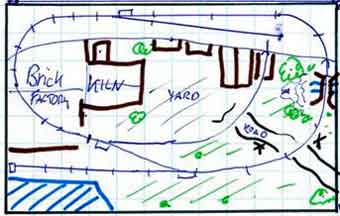

He got busy drawing up a 36x24in (90x60cm) version of the On30 Avalon plan (upper right) called Dominion Brick & Clay, then built a “picture frame” stage for it, complete with proscenium arch, lighting and backdrop. And as you can see (upper left), he made it to the show with a completed layout!



[Editor’s note: There seems to be a trend towards calling this kind of staging a “shadow-box” layout. This label is incorrect. A shadow-box is a special kind of “picture frame” box that is only an inch or so deep, intended only to display 3-D objects like coins or military medals. When used to display a full-depth model layout, this kind of staging is more properly termed a “picture frame layout” or, technically, a “proscenium arch layout.” We now return to our regularly scheduled programming.]

Dominion Brick Co. Dominion Brick Co.
The layout was a hit at the train show, as you can see (above right). The baseboard is made from pink extruded polystyrene foam, cut out for harbor and creek areas. Track is Peco On30 in front and regular HO track behind the scenes. Motive power is a Bachmann Davenport gas-mechanical “critter” detailed with a Backwoods Miniatures kit and awaiting installation of a sound unit. Daniel managed to install an MRC ambient sound generator in time for the show, but couldn’t finish the diesel and railroad sounds installation in time. But he did have dogs barking, a cow mooing, and a church bell ringing in the distance (the bell nearly drove him crazy over the six hours of the show).

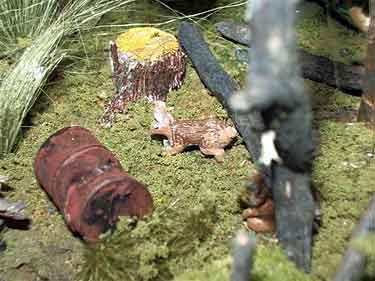

He did have time to add lots of scenic details to the layout. Buildings are mainly brick sheet over .040in styrene walls with commercial styrene details. “The main building has a mirror on the back wall and some LED lights, as have some of the buildings that sport windows. I also added a smoke stack to the original building cluster,” Daniel points out. There are lots of other scenic details from various sources, right down to seagulls and a few rabbits.
Dominion Brick Co. Dominion Brick Co.


On30 (1:48) — ‘TWO FACED’ DESIGN GETS TWO BUILDINGS IN ONE

CC Day RR

Lloyd Day, from Old Town, Maine USA, has built the C.C. Day Railroad (for his grandfather who owned a lumber mill), an efficient On30 oval layout in a 48x12in (120x30cm) bookshelf space. He uses Bachmann four-wheeled locos and rolling stock, which run just fine around the five-inch radius curves. The track plan is very simple, with a left-hand turnout in each side of the oval to create two parallel sidings. In between them, Lloyd has built a two-faced building, with a different side facing each siding. “I call it my ac/dc building, as one end and side have green board and batten siding and the other end and side have stained vertical board siding,” Lloyd explains. Thus he gets the effect of two car switching spots with just one structure!
CC Day RR CC Day RR


On18 (1:48) — EXTRA NARROW GAUGE LAYOUT MEASURES JUST 23x12in

Rattlesnake Flats

Russ Haigh, from Willoughby, Ohio USA, put together Rattlesnake Flats, a “quickie” On18 (1:48 on 9mm gauge) layout to take to a narrow-gauge train show. “The layout is 23x12in (58x30cm) and created quite a stir at the meet as it was the first micro that most of the folks had seen,” comments Russ. “The Station is an Ameritown plastic kit; the store is Paper Creek. Minimum radius is 5½in (14cm).”

Russ built an 0-6-0+0-6-0 Garratt loco (lower right) from two LifeLike N 0-6-0’s, and it rounds the tight curves quite well!
Rattlesnake Flats Rattlesnake Flats


On30 (1:48) — NOW FOR SOMETHING COMPLETELY DIFFERENT…

LifeLikeLayout

Pine Hollow was built to look like the Life-Like molded Ready-to-Run HO layouts sold a few years back. Jeff Trenholm, from East Windsor, New Jersey USA, liked the “shiny plastic” look and set out to emulate it using On30 trains in 42x72in (1.1×1.8m). Hills are made from spray foam! Buildings are commercial structures, trees are cheap “trees-in-a-bag,” and there’s even a back-and-forth streetcar in the middle. In real life, Jeff’s the man behind Mega-Steam smoke fluids. In this layout he uses “Lumber Mill” or “Original Cedar.”
LIfeLikeLayout LIfeLikeLayout


On30 (1:48) — DOUBLE-SIDED LOGGER GETS ‘LOADS IN, EMPTIES OUT’

Qualicum Logging RR Qualicum Logging RR
Another 2x4ft On30 layout is the Qualicum Sound Timber Company of Brian Durell, from Bloomfield, Ontario, Canada. The theme is Canadian west coast logging, specifically on Vancouver Island in the 1920s and 1930s. The layout was designed from the beginning to be used at train shows, so an oval (above left) is used to keep trains moving for the spectators. The S-curve in the middle, however, despite its tight radii, allows passthrough of trains from one side to the other, through the central backdrop. This is the secret of the “loads in, empties out” operation.

The exhibited layout can be viewed from all four sides (above right). “It features 4 (count ’em) proscenium arches,” boasts Brian. “For travel, ‘curtains’ of plywood slide into the sides and ends of the layout to protect it. At shows, those plywood sheets fit together in a simple egg-crate form on top of which the layout sits. If the layout is assigned a standard table at a show, this scheme boosts the whole thing to near eye level for viewing.”

The featured operation is illustrated in the photos below. From the log loading side (left photo) the Bachmann Porter loco shoves a cut of log loads through the backdrop portal. On the opposite log-dump side (right photo), the cars are unlooded, and the empty cars returned to the other side, where they’re reloaded for the next cycle. The basic idea is very effective for simulating an actual working railroad. This layout is still under construction, and we look forward to providing more photos as work progresses.
Qualicum Logging RR Qualicum Logging RR


O-16.5 (1:43.5) — QUARRY LINE ROCKS!

Everthorpe Quarry Everthorpe Quarry
Inspired by Steve Waterfield’s Petroc Quarries, Ian Wilson, from South Cave, East Yorkshire, England, built this 60x41cm (24x16in) O-16.5/On30 layout, Everthorpe Quarry. The main workshop building has a well-detailed interior as well as an external gantry crane. “As this is a quarry layout the choice of ground cover was simple—rock,” declares Ian. “Woodland Scenics talus in all sizes from fine to extra course is used.” Clutter and junk, the defining aspect of quarries, is “carefully arranged to make it look as if it has just been dumped… The Priestman shovel (Duncan Models) is there because I can remember visiting the Priestman factory when I was a boy. ”
Everthorpe Quarry Everthorpe Quarry


G (1:22.5) — ARMY TRAINING GROUND (PUN INTENDED)

Army Training Train

One of the best backstories I’ve heard to justify a relatively plain train set on a concrete slab was invented by John Hanks, from Laramie, Wyoming USA. He puts his G scale trains out for the summer to represent a special U.S. Army training layout at Fort Dix, New Jersey. Soldiers are trained in sabotage, anti-aircraft defense, strafing defense and in general railroad skills such as operating a locomotive or building ramps for tanks. The Army even makes real life simulated towns for training in urban combat—represented here by movable cinder blocks. Remember the Irving Berlin WW2 song, “This is the Army, Mr. Jones”? Make that Casey Jones!




Gn15 (1:22.5) — RURAL LINE FEATURES REALISTIC SCENERY

Upton Ghyll

Upton Ghyll

Andrew Milner, from Huddersfield, West Yorkshire, is reusing parts of his atmospheric layout, Arthur Crumb (see Scrapbook #72a), in a new Gn15 line now under construction. Called Upton Ghyll, this one measures 36x16in (90x40cm). The name is a nod to Brian Fayle’s influential Gn15 line, Upton Whent, and—in an even more tenuous pun—to singer Billy Joel. (Incidentally, the red Fordson tractor, also featured in the previous layout, is an all-cardboard model that Andrew built several years ago from a design by Ed Bertschy.) We’ll bring you more photos of this scenic layout as progress occurs.
Upton Ghyll Upton Ghyll


Gn15 OR On30 — CLOVER-LEAF DESIGN MAKES AN UNUSUAL LAYOUT

Klaverbladbaan

Hans van der Linden, from Eindhoven, The Netherlands, was intrigued by the track plan of the Bekonscot Light Railway in Scrapbook #67, modestly self-described as “pretty darned brilliant for the space available.” Hans explained his reaction, “Of course, this called for lots of scribbling on pieces of paper, seeing what can be done with sprung points and a continuous run with more than just two circles. This (at right) is what I ended up with.”

All the turnouts (except the one leading to the engine shed) are “sprung”—i.e., they are insulated-frog units with sprung points that always lead trains in the indicated direction. Hans points out, “Using this track plan, a train can run continuously, passing through each of the circles. In fact, as many as three trains could run on these tracks if stopped in the appropriate places at the appropriate times.”

Suggested scenery represents an island with a lighthouse, owned by a railroad fan who likes rabbit-warren layouts! As for the size and scale/gauge, with 8-inch radius curves the layout would require about 42x42in (107x107cm), probably in a narrow gauge. Hans advises: “I myself would probably choose O-9, but it could also be built in Gn15 or O-16.5 (On30) for those with a little more room available. Remember to think about the scale size of the lighthouse before you choose your scale!”




Gn15 (1:22.5) — SMALL PIECES OF FRANCE GET TOGETHER BEAUTIFULLY

Tonnellerie d’Etropal

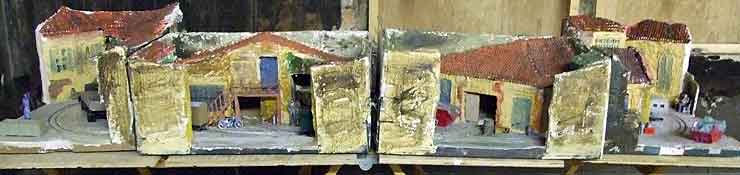

This unusual layout shows what can happen when you start building shoebox-sized layouts! Briton Simon Dawson, a confessed Francophile, explains it thusly: “I liked the idea of building a layout in a shoebox, but my type of layout would not fit so easily, so I started playing around with cardboard fruit-boxes. They are pretty sturdy, having to survive thousands of miles of travel transporting perishable fruit and veg.

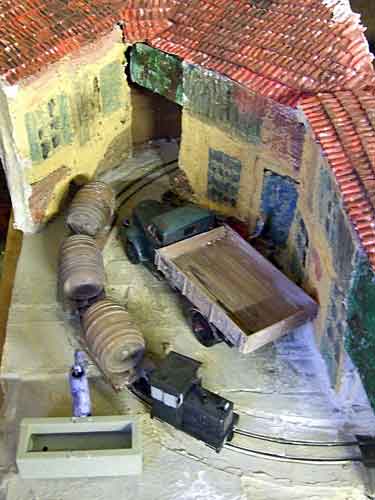

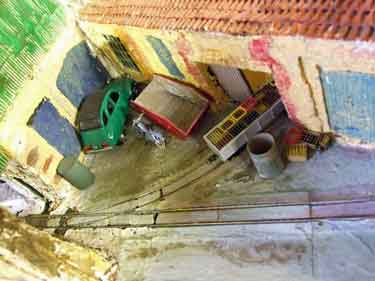

“My latest, a Gn15 layout using several boxes, has been completed to a certain degree. Here are some pictures. More can be found via my website. The name of this layout is Tonnellerie d’Étropal. It features a barrel-making works, somewhere in France. Wood comes in, barrels go out. An essential part of French wine industry, the line is also used to transport supplies (like wine) from the winery to local village cafes. Indispensible!”

Simon also comments that most of the buildings are made from mashed paper, ground up and pressed wet into molds! Note that each fruit box section contains a different portion of the line, and all the boxes fit together (with some bare track behind the scenes) to form an oval layout that is well within the size boundaries for a “small” layout. It’s a truly “different” approach!
Tonnellerie d'Etropal Tonnellerie d'Etropal

Tonnellerie d’Etropal Tonnellerie d’Etropal


Gn15 (1:22.5) — SCULPTURAL LAYOUT IS A SHOWPIECE

Potter and Klaymore

In Scrapbook #76, “The Model Railroading of Art,” one of the layouts singled out for mention because of its artistic, sculptural qualities was Potter & Klayman, created in 2003 by Ian Campbell, from Ontario, Canada. Ian has semi-retired from model railroading, but his friend, Brian Fayle, has exhibited the layout on Ian’s behalf on a number of occasions. Brian recently dug into his computer files and unearthed a treasure trove of photographs of the layout that he took in 2003, showing the line under construction as well as newly-finished. It’s a Gn15 loop of track, with a turntable at one side. These photos are presented for your enjoyment and reference, to see from all sides how this appealing display was put together.
Potter and Klaymore Potter and Klaymore
Potter and Klaymore Potter and Klaymore
Potter and Klaymore Potter and Klaymore


Info for the ‘World’s Smallest’ Challenge



The 3 Smallest Layouts Already on This Site



Three possible contenders for the World’s Smallest Working Model Railroad Challenge have appeared in past issues of this Scrapbook. None has yet been entered in the Challenge, however, so this listing is for your reference, information and pehaps inspiration.



On30 (1:48) — Mike Mackay’s Silver Dollar Tramway Layout

Silver Dollar Tramway Silver Dollar Tramway

The first archival very-small layout actually fits the theme of this issue! The Silver Dollar Tramway was built as a continuous circuit in On30 scale (1:48 on 16.5mm gauge—widened in this case to 17.5mm to handle the radius). Mike Mackay, who lives in Dartmouth, Nova Scotia, Canada, comments, “The dimensions are 3½x3½in (89x89mm), and the ‘baseboard’ is a piece of 2×4 (51x102mm) cut square. The inner track is a promotional dollar coin, about 32mm diameter. Since the motive power has two solid axles—albeit realigned as shown in the picture (right)—the coin is free to turn in order to minimize wheel slippage. The carbody is a Peco O-16.5 coach; the power came from an old diesel truck.” This layout first appeared in Scrapbook #51.



Nn2 (1:160) — Hiromi Masaki’s Calling Card Layout



This Nn2 layout, built by Hiromi Masaki, from Yokohama, Japan, is the size of a Japanese business card (90x55mm or 3.5×2.2in). Track gauge is 3.75mm! “The yellow skip is freelanced, and the locomotive is motorized to an Nn2 diesel locomotive kit produced by Railino,” Hiromi reports. To see it in action, click on the triangle in the lower left corner of the video screen at right.

This little line has to be one of the most travelled model layouts in the world. It was originally exhibited at the JAM exhibition in Tokyo. Then Hiromi brought it to the U.S. for the National Narrow Gauge Convention, and then later he sent it to the Expométrique exhibition in Paris! It first appeared on this site in Scrapbook #43.



Z (1:220) — Manfred Sobczak and Walter Völklein’s Subminiature Layout

Subminiature Z scale layout

In Germany, Manfred Sobczak created this tiny subminiature pizza layout in Z scale (6.5mm gauge) on a track base fabricated by Walter Völklein.

Walter made the track by soldering the rails with a 14mm (0.55in) radius to a piece of copper-clad printed circuit board, then grinding away the cladding between the rails to isolate them electrically. About the layout construction Manfred commented, “This layout has built in one reed-contact and knob-cells. You can control the driving of the loco and the lamp-light using the magnetic pen shown. On this micro-radius, only locos with axial distance of [no more than] 12mm can move (for example this Köf loco from Dr. Andreas Scheibe).”

This tiny layout (and its only slightly larger sibling) were shown originally in Scrapbook #72a.



World’s Smallest Working Model Railroad Challenge:
Rules and Information, Update 1, T Scale: Terrific or Troublesome?

CHALLENGE DEADLINE: 30 NOVEMBER 2008
