PAGE 97a – May 2010

H O T I D E A S F O R S M A L L R A I L R O A D S IDEA LOG

Where do layout ideas come from? Many originate from observing the prototype (see Scrapbook #92 and watch this space next month). Additional ideas often come from viewing other people’s model work. So here’s a collection of current projects that may inspire your ideas.

In This Issue Wealdon Railway Group—2010 Exhibition Gallery Practical Pizza—A useful gardening tool wrapped in a layout Two New Commercial Trains—Good news for narrow gaugers Special Movements—Another way to add interest to ops LImbo Sets—Limiting light lifts layout looks Chicago Fork—An O scale, standard gauge micro layout Online Switching Games—A pair of switching games on the Web Micro Modules—A modular approach for small-empire builders Fooling with Forks—Fun with a simple track configuration NZ Model Railway Convention—2010 A3 layout competition gallery

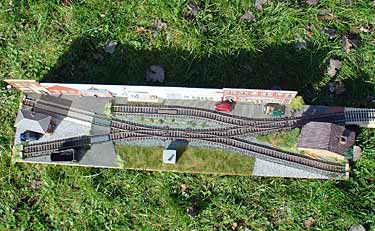

GALLERY 1: WEALDEN RAILWAY GROUP EXHIBITION, 2010 Wealdon Railway Group wrg2 Wealdon Railway GroupA good way to learn what’s going on is to view a small-layout showing, and none is better than the UK-based Wealden Railway Group‘s annual exhibition. The WRG is an online club dedicated to “Layouts you can live with!” Giles Barnabe, who provided pictures of entries in this year’s small layout competition, explained the complex rules this way: “The layout had to be capable of operation, have three to six turnouts and (sting in the tail) be no larger than three sheets of A4 office paper [metric letter paper]. As an aid to operation a portable ‘stick’ with a single length of track 29.7cm [11.6in] long could be added to the end of one track to enable switching to take place.” Got that? Here are some of the entries, all less than 89.1cm (35in) long. (Top left and right)—Stockton Tramway by Chris Ellis, a Wantage style tramway set in Southern Railway territory (compare with his Small Street Yard). (Left)Elcross Street by Geoff Latham, a modern diesel depot designed to be viewed end-on. (Below, left)—Roxteth by Ian Buck, a fictional outpost of the London Transport (subway) system, featuring vintage cars. (Below, right)—Garfield by Andrew Knights, an American inner-city ferry terminal with elevated commuter line. Wealdon Railway Group Wealdon Railway Group [Ed. Note: The winner of this competition did not permit publication of photographs, so he is unshown and unnamed here.]

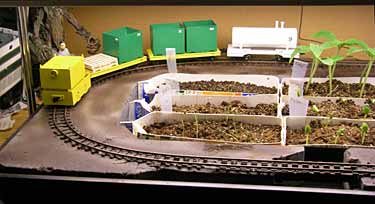

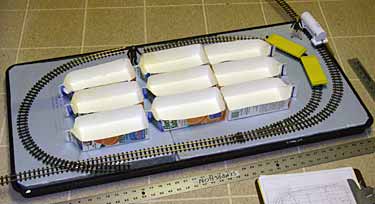

THIS ‘PRACTICAL PIZZA’ ACTUALLY INCREASES GARDENING SUCCESS! Practical Pizza Practical Pizza Long-time contributor Jeff Semprebon, from Claremont, New Hampshire USA, reports he has finally been able to “finish” a micro layout, largely because it features very simple scenery—and a very unusual mission. Jeff calls it his Practical Pizza, measuring 42×20½in (1067x521mm). Here’s how he describes his project: “This microlayout (with the central region subtracted, it comes out to just a bit under four square feet) was designed to overcome a problem of seedlings dying due to neglect. The concept was to encourage more diligent care by combining the seed-starting flats with something of greater interest. It is built in an ‘English Boot Tray’ with two pieces of scrap blue insulating foam forming the base for the track. A notch cut in one foam piece by the previous owner suggested a cutout for a stream, and a bridge was built up from some scrap Plastruct. “The track, Peco O16.5, was secured onto the individual foam pieces with Liquid Nails adhesive for projects. While designed for 1:18 scale (representing one-foot gauge), it has no scale-specific features as yet… The result? So far, use of the layout seems to have reduced my seedling mortality rate to about 40%, down from 100% killed in years past.” Seedlings, as you can see, are contained in cut-down milk cartons. Visible in the finished-layout photo (above left) are, from the rear by row: impatiens and zucchini, marigolds and yellow squash, leeks and tomatoes. Sounds like a delicious as well as a useful way to enjoy a layout!

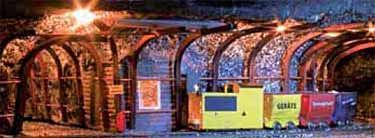

GOOD NEWS FOR NARROW GAUGERS… TWO NEW COMMERCIAL TRAINS MinitrainS Bosch train Quite a number of readers have drawn my attention to two new product releases in the past couple months, both of H0 scale narrow-gauge Ready-to-Run trains. Both of them should make it easier to build small narrow-gauge layouts, especially with mining themes. The first (above left) is the return of MinitrainS, originally distributed by AHM in the US, now re-engineered and released by Big City Hobbies. These are H0n30 (1:87 scale running on 9mm tracks) with US Plymouth locomotives. From all reports, it appears that these new locos run significantly better than their predecessors. Thanks to Thomas Schaefer, who was the first to alert me to this welcome reissue. The second (above right) is a mining train released by Busch in Germany. These are H0f (1:87 scale running on 6.5mm gauge) of German prototypes, running on standard Märklin Z-scale track. Busch also introduced an impressive range of structures and accessories for mining layouts to accompany the trains. Thanks to Thomas Hentschel, who provided additional information about these new products. I’ll look forward to seeing and publishing some layouts using these exciting new products!


UNUSUAL ROLLING STOCK MOVES CAN SPARK OPERATIONS Special Moves Special Moves John Bruce, from Los Angeles, California USA, points out that special movements (often involving special railroad cars) are another way to add operating interest to a small layout. John adds, “I think we tend to get caught up in the idea of [standard rolling stock] and maybe forget about the opportunities occasional special operations provide—certainly on an exhibition layout, but also just for home running or photography. Because some of the cars may be longer than usual (but perhaps not too big for many micros), this may involve a little extra planning for the occasional 89-foot piggyback flat, whalebelly tank car, or whatever.” John sent along some examples, beginning (top left) with a work train special, featuring one of those fascinating Maintenance-of-Way cars that are now available in model form. Some other possibilities, which John staged on his new layout (watch for it in a future issue), include (upper right) special passenger or office car runs, like this business car being hauled through an industrial district. Another potential special move (lower left) might be a consist that looks crazy but has a logical explanation, like this Amtrak special work train being pulled by the first loco available at the time it was needed. And finally (lower right) there are high wide moves, that require special care, often (as here) special cars, and definitely special routings. Got a special move consist on your line? Send me a photo… we’ll do a roundup of other Special Moves in a couple months. Full credits will be given, and there’ll be a small prize for the best suggestion (in the judges’ opinion, which is final). Deadline for photos is 30 June 2010. Special Moves Special Moves

Special Moves Speaking of Special Moves, here’s one featured on Brooklyn: 3 AM, Prof Klyzlr’s H0 line that actually lives in Sydney, Australia. The prototype line in Brooklyn connected, among others, the New York transit system yards with the car ferry to New Jersey… and so ailing subway cars often trekked over this route, heading for repairs in the Jersey car shops.


LIMITING LIGHT CAN LEVERAGE LIFELIKE LOOKS ON THE LAYOUT   Carl Arendt’s recent essay in Scrapbook #95a, “How Stage ‘Tricks’ Can Add Enjoyment to Small Layouts,” discussed the dramatic impact of Limbo Sets—settings that surround the modelled scene with black. Among others, he used as an example Gavin Sowry’s Gn15 layout, Haywards Estate Railway in Scrapbook #73a, which read: “Another design trick Gavin used is to paint the baseboard around the entire rim of the layout a flat black, including the corners. The effect is to emphasize the layout colors, much the way a diamond is displayed against black velvet.” Shortly thereafter Gavin e-mailed: “Since this was recently topical, I went out to the train shed and set up this shot [below, left]. The secret was not to let any light shine on the backdrop… it’s a black bed sheet, and it was/is full of creases.” Notice how, in addition to hiding the creases, the black surroundings accentuate the colors and crispness of the modeling and add considerable drama to the scene. Carl can attest to the accuracy of Gavin’s observation, having used the “black surround” idea to photograph his HO shoebox-sized layout, Carnegie Car Shops (lower right). The limbo set effect makes this tiny layout look more substantial and imposing, because there’s no object with which to compare its size! In Carl’s case, the blackness was created with Black Foamcore art board from Target. No wrinkles! See Scrapbooks #73 and #78a for more. Limbo set look Limbo set look

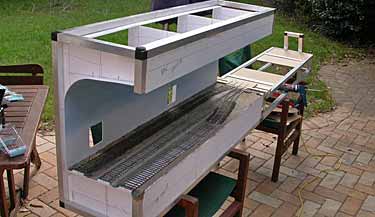

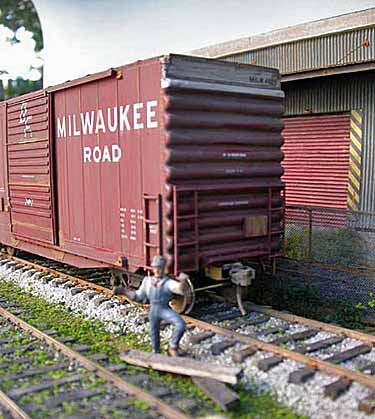

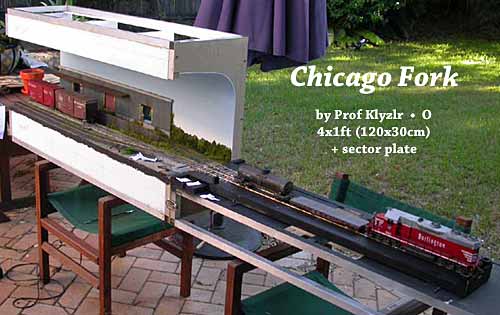

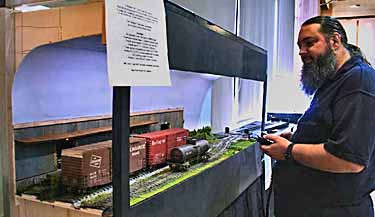

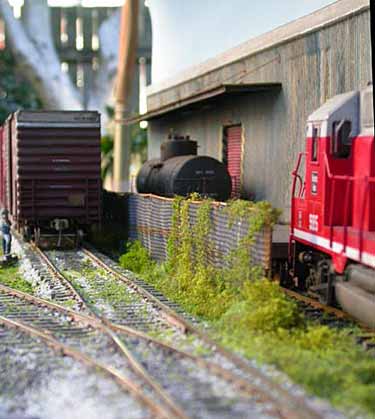

AT LAST… A FULL-SIZED, O-SCALE, STANDARD GAUGE MICRO LAYOUT! Chicago Fork Chicago Fork A Holy Grail of micro layout design has long been a full-blown, O-scale, standard gauge operating railroad in less than four square feet. Both Carl Arendt and Casey Sterbenz have made stabs at it (e.g., see Scrapbook #73a), but to the best of our knowledge none has actually been built—until now. Ladies and gentlemen, meet Chicago Fork! It’s an O-scale micro layout recently debuted by Prof Klyzlr, in Sydney, Australia. It’s a gem! Prof displayed CFRR at a gathering of tough, critical Aussie O-gaugers, who squinted at it, grudgingly spotted a few cars… and found it good! The layout was built to answer a challenge from this hard-core O group. It was also Prof Klyzlr’s first attempt to build a personal O-scale layout. It represents the eastern end of a Burlington Northern runaround loop (passing siding) in a Chicago industrial district, and includes a spur serving the Chicago Fork and Hoist Warehouse. It’s a 3-2-2 Inglenook, with the three-car industrial spur at the rear and the two front lines representing the “main” and “passing” tracks. The layout is served by a Central Loco Works brass GP35, two Atlas 40ft Hy-Cube boxcars, a 40ft flat car and 38ft tank car from Red Caboose. Operation begins with a four-car train headed by the Geep resting on the main line (delineated by white ballast). Of course, the main line is only two cars long, so the train overlaps into the sector plate fiddle yard, which measures 95cm (37.4in) long. Three cars and assigned spots are selected, and the fun begins! (Hint: a good first move is to split the train, putting two cars in each of the two front tracks, then go to work from there.) Chicago Fork Chicago Fork Construction is somewhat unconventional and extremely lightweight (left above). Main materials are 1-inch aluminum channels and 3/16in foamcore art board. The layout was purposely left uncovered even at the show (right above), so that the viewers could see how it was put together. (That’s David Pallas at the controls; Martin “Mad Marty” Hartley is pictured on the home page.) The sector plate was not covered at all, because of the high interest in that area. The picture frame proscenium surrounding the visual portion of the layout is made from foamcore board, inspired by Carl Arendt’s Peek’s Pike. Chicago Fork Chicago Fork As you might expect, Prof Klyzlr took full advantage of O-scale’s size in detailing the layout. Track features several types of ballast (white for main line, grey for passing siding, black cinders for industrial spur), a handlaid turnout, and handlaid trackage built with scale 39ft lengths of rail. Scenery is basically a “first draft” because Prof’s intention was to sell the layout at the convention (which he did), as there was no room for it in his home! The brakeman figure (left above) marks the clearance point of the tracks leading from the turnout. Chicago Fork Chicago Fork Chicago Fork The sector plate, which generated so much interest, is much like those used in the smaller gauges, only sturdier. Ties (sleepers) form an apron in front of the plate, continuing the #5 turnout angle established on the scenic section. At this time, we have no idea whether Chicago Fork will inspire a renewed interest in very small O-scale layouts, but if it does we will make every effort to show them to you!


NEED SHUNTING PRACTICE? HERE ARE TWO ONLINE SWITCHING GAMES Dawson Station Online Game Dawson Station Game Ken Olsen, who created Dawson Station, an N-scale shelf switcher that was voted among the Most Favorite Layouts on this site in 2009, has written and posted a virtual operating version of the layout. The playing field is shown (in reduced size) at right. It’s a lot of fun to solve a simple switching problem exactly the way it was handled at Hull-Oakes Sawmill, the layout’s prototype. Ken adds, “After solving the initial puzzle, you can add some difficultly by deselecting the ‘Easy Throttle,’ which adds more realistic acceleration and deceleration, or deselecting ‘Easy Setup,’ which resets the layout, adds another empty car and adds another required spot to finish. Both these together make it more like how the layout actually operates. “The project I used to create the applet, called Processing, is free and open source, as is my source code. If you click on the link below the applet, you can see (and copy) my code and take a stab at modifying it if you desire.” Online Train Game “Trains!”

Game Trains! (left), an online train-operations game, was called to our attention by Mike Allred, from Norco, California USA. Mike commented, “It’s hailed as an online ‘puzzle game,’ but it is plainly a challenging set of micro layouts.” Warning: unlike the Dawson Station puzzle, this game is not at all realistic. It has many whimsical, and a few magical, features that put it in the realm of fantasy (example: you can turn a locomotive on the turntable without uncoupling it from its train! And wait until you see the Automatic Car Position Exchanger!). That said, Trains! offers 21 different small layouts for you to have fun switching.

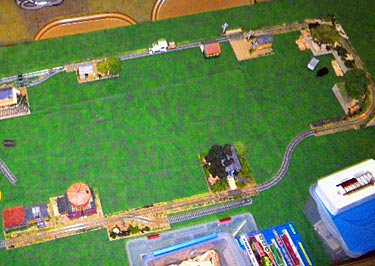

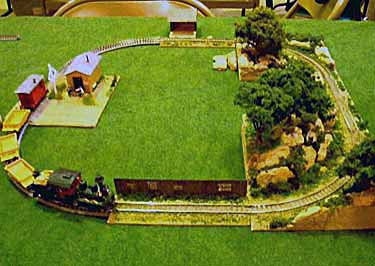

A POTENTIAL IDEA FOR MICRO EMPIRE BUILDERS Micro Layout Modules Micro Layout Modules Micro Layout Modules Micro Layout Modules Micro Layout Module Here’s an idea that I’ll bet has occurred to nearly everyone who started out with a sectional track train set. But James Macintyre, from Mahwah, New Jersey USA, is the first person I know of to actually carry it out and show it to others! Here’s how James describes his accomplishment. “I have spent the last few months building up some HOn30 micro-modules based on the Tomix Fine Track N scale modular system. I have been working mostly with their 140mm (5.5in) radius track and switches. These micro-modules are a small section of track with scenery that can be combined into a functioning layout of any size. A loop of 140mm radius tracks would produce a layout of about 1 square foot. Because the track is a completely modular system, the modules can be combined in hundreds of configurations. With DCC control the 2 rails are all the wiring needed to operate multiple trains.” Some of James’s micro-modules are shown above. Thus far, he has combined some of them in two public configurations (below): a 2x2ft (60x60cm) design (left) and a 3x6ft (90x180cm) version. As you can see, he doesn’t attempt to cover all the layout area, but rather connects his micro-modules with lengths of bare track (the Tomix track has an integrated ballast base). [Ed. note: I confess I’m of two minds about this. It seems to require a lot of effort, when you could just build a couple of micro layouts and get more effective scenic integration. On the other hand, James has tremendous flexibility in the layouts he can put together. What’s your reaction? Has anyone else tried something similar? —Carl] Micro-Layout Module Layout Micro-Layout Module Layout

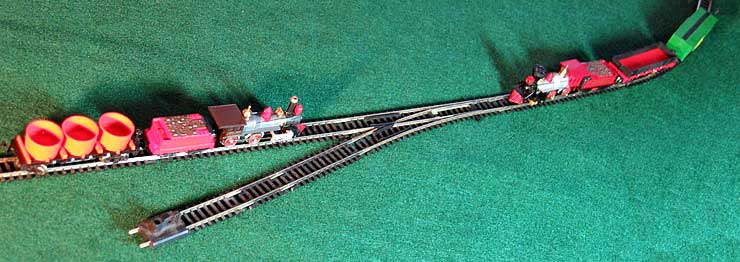

FOOLING WITH A FORK CONFIGURATION CAN BE FUN Fork Puzzle The Single Line Terminal (SLT) is an idea we’ve explored from time to time in these pages. Alan Cox, from Swansea, Wales sent along a meditation on a variation of the SLT that has a lot of possibilities for small-layout operation. “Imagine an SLT where offscene the line divides (it’s the end of a switchback or a terminus where lines meet—there are lots of prototypes). Some operations you get are: Two trains passing (yes you can do it).” The photo (above) shows the classic form of this activity… The train on the right is leaving the terminal, the other is arriving. The “game” in this case is for the trains to pass each other using a fork with the spur being just one car long. Give this one a try! The solution is here. Alan sensibly points out that while this kind of puzzle is fun to solve, it doesn’t work that way in real life. “The way it’s done in the real world examples I know is that the two trains are kept short enough to both fit in the long single section. Both arrive and are stacked up in the single section then leave in reverse order. Anything else while topologically interesting isn’t commercially interesting!” Then, chortling, he continues. “The combination of passenger services and handing over freight to timetable turns out to be suprisingly complicated because you have to slot in light engine movements and find places to hide stuff as the single platform line fills up. So you get things like this:

  • light engine down main line to platform, reverse onto start of freight line
  • passenger service to platform (railcar, DVT or autotrain so you don’t need to run around—this works well for the UK it’s pretty much normal and was done even back in steam days)
  • freight arrives and stops behind the light engine on the freight line
  • passenger service leaves
  • light engine moves back onto the main line clearing the platform area
  • freight runs into the platform
  • other engine couples up to the freight
  • freight leaves following the passenger service out
  • industrial trundles off back home down freight line

“And you can make it even more complicated by putting a fueling point at the very end just beyond the platform. This also works very well as a fork-type design but with both forks running offscene, as you can then park stuff up in view waiting to run in (and play with lights and sound while you wait). Get yourself a couple of bits of track and a switch and try it… you may be suprised!” Footnote: Alan also passed along a sparkling idea for switching-shelf operations, attributing it to Stephen Nicholls. “There is a superb game for shunting (which I first saw suggested on the DEMU forum) for keeping people sane while exhibiting shunting layouts. Wagons have scrabble letters attached to the non public visible side with the most common letters attached to more common wagons. The fiddle yard operator sends wagons down the line for delivery and the shunting operator has to send back the highest scrabble word score they can manage…”


GALLERY 2: NEW ZEALAND MODEL RAILWAY CONVENTION, 2010 New Zealand Convention New Zealand Convention

New Zealand Convention The Dominion Box Co. by Tim Marshall. Accolade for Ingenuity

Every two years modelers from all parts of New Zealand gather for the National Model Railway Convention. In 2010 it was held in Christchurch and featured a special competition for A3-sized layouts (no larger in area than an A3 sheet of paper—297x420mm or 11.7×16.5in). Many thanks to Kevin Prince, Will Vale and Gavin Sowry for finding and sending along photos of the entries. Will Vale’s Gn15 layout, Tanis 1937, won the Best Working Layout award. The judges awarded Best Diorama to Creamoata Mill, a model of a New Zealand landmark. Finally, Tim Marshall’s The Dominion Box Co. won the Accolade for Ingenuity, awarded and presented by Guest of Honour Iain Rice. Tim’s model was made entirely of corrugated cardboard, including a working turntable!

New Zealand Convention
Papierfabrik Anton Drei (A3 Paper Mill) by Kevin Prince New Zealand Convention
Pizza’n’Beer by Gavin Sowry
New Zealand Convention
Z Scale in a Briefcase by Andrew Snodgrass
New Zealand Convention
Tanis 1937 by Will Vale. Best Working Layout
New Zealand Convention
Revolving On30 Pizza by Graham Dredge
New Zealand Convention
Roundy Stonewerk by Lindsay Thompson



New Zealand Convention
Road Maintenance and Level Crossing by Robin Knight
New Zealand Convention
Creamoata Mill by Mark Dalrymple. Best Diorama
New Zealand Convention
Can You Hackett by George Gardner
Kevin Prince organized the competition and provided most of the photos. A special thank you to Graham Dredge for filling in the missing layout builders’ names.
